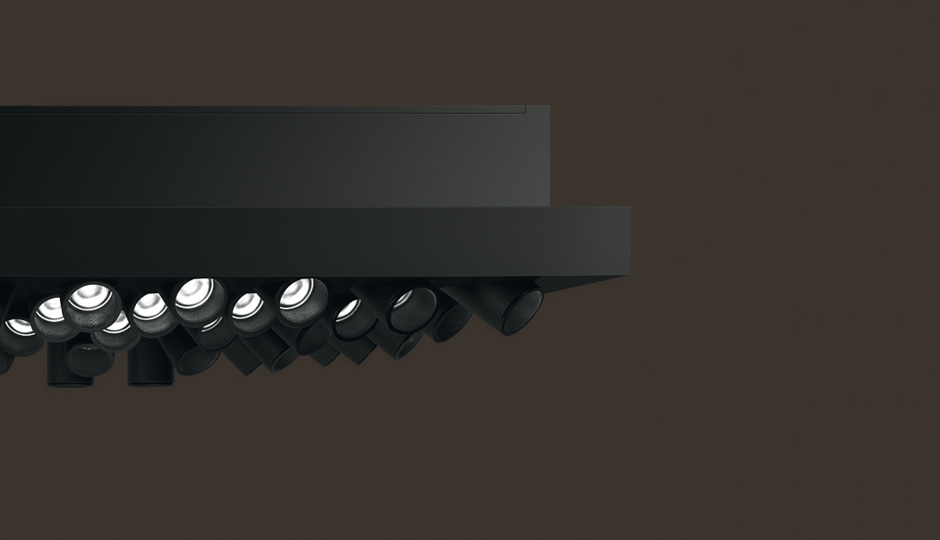

Supersystem outdoor

LED outdoor luminaire

Multi-zone lighting
for effective design
of outdoor areas.

Supersystem outdoor

is breaking new ground

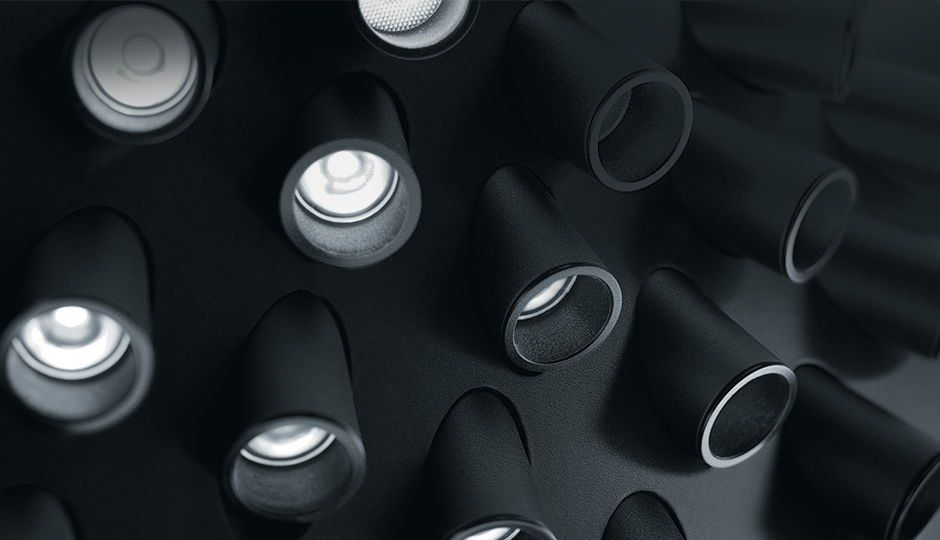

  • Multiple light tubes create a uniquely refined luminaire
  • The best glare suppression increases visual comfort and well-being
  • Directed, well-dosed light also actively protects against light pollution
  • Multi-zone light distribution and pivoting tubes on request make it possible
  • Continuous design through all applications

Supersystem outdoor

Lighting that makes an area effective.

Conventional street lighting
Street lighting with SUPERSYSTEM outdoor
  • Conventional street lights primarily brighten horizontal areas.

  • SUPERSYSTEM outdoor includes vertical as well as horizontal areas in the lighting concept

  • Unique visual comfort through a division of the amount of light - light emitted from multiple tubes prevents too high light pressure and limits the glare

Supersystem outdoor

Lighting that combines integration with precision.

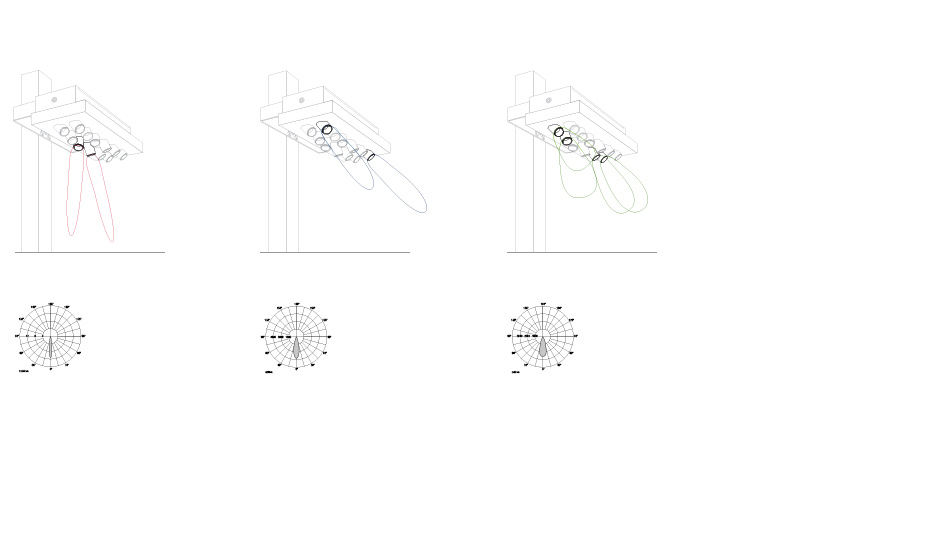

Spot Optics
Beam angle 11°
Wide Flood Optics
Beam angle 40°
  • Modular luminaire family for many different outdoor lighting tasks
  • Precise because every tube is equipped with the respective appropriate optics, with every angle of inclination and opening angle oriented to the object to be illuminated.
  • Precise light control ensures outstanding glare suppression, prevents scattered light and light pollution.
  • Specific variation of luminous intensities and contrasts in combination with a lighting control system
Flood Optics
Beam angle 27°

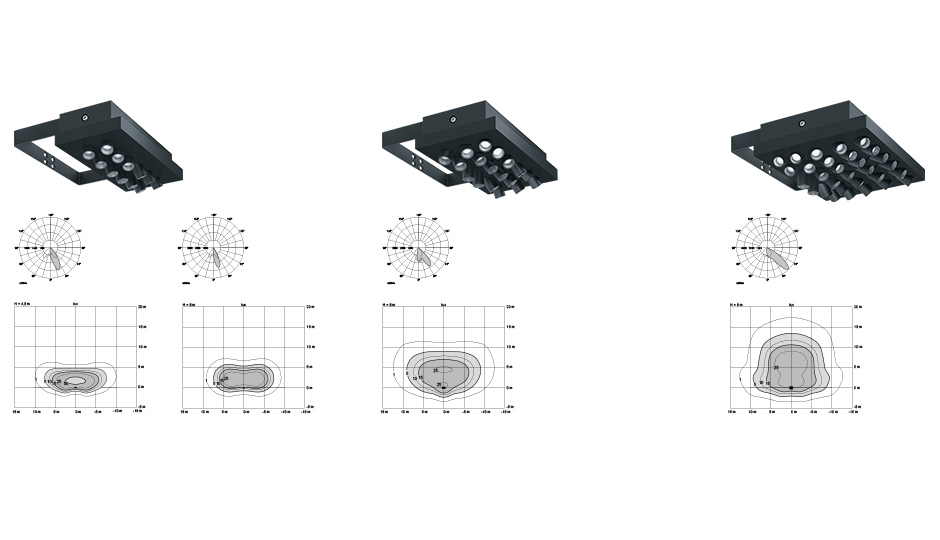

Supersystem outdoor

for pavements, roads and squares

Type SNB H
18 tubes module
Luminaire for road and street lighting: Optics, inclination and opening angles of the 18 LED tubes are perfectly matched to the lighting of streets and
small squares.
Luminaire for pavements:
Optics, inclination and opening angles of the 12 LED tubes are perfectly matched to the lighting of narrow paths and alleys.
Luminaire for squares:
Optics, inclination and opening angles of the 30 LED tubes are perfectly matched to the lighting
of large squares and
streets.
Type FLB
Type SNB L
30 tubes module
12 tubes module
Type SDB

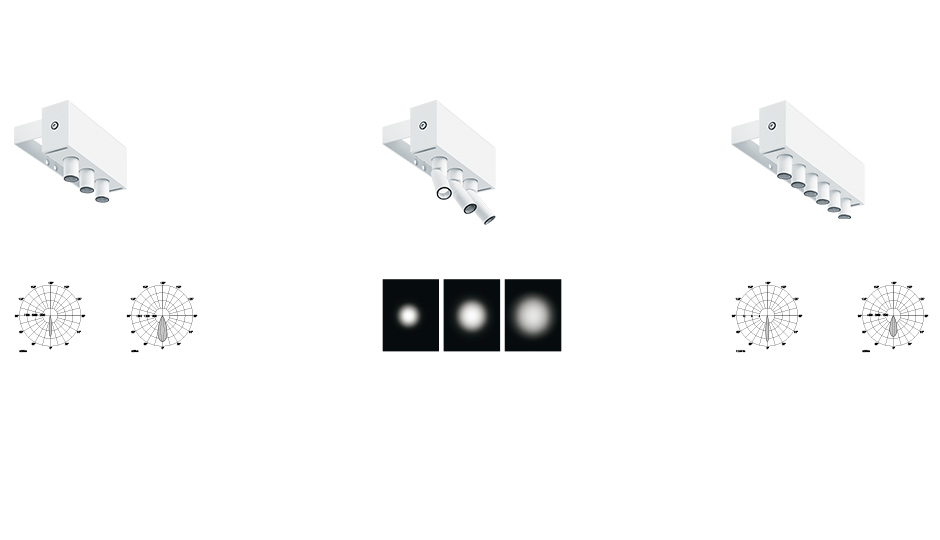

Supersystem outdoor

for façade lighting

Fixed 6 tubes module
Compact façade floodlight with
6 fixed LED tubes: Ideal for accentuating façades with various radiation characteristics.
Elliptical distribution
Compact façade floodlight with
3 fixed LED tubes: Ideal for accentuating façades with various radiation characteristics.
Compact façade floodlight with
3 movable LED tubes: Ideal to flexibly accent individual façade elements.
Movable 3 tubes module

Spot
11° (SP)

Flood
27° (FL)

Wide Flood
40° (WFL)

Narrow beam
Narrow beam
Fixed 3 tubes module
Elliptical distribution

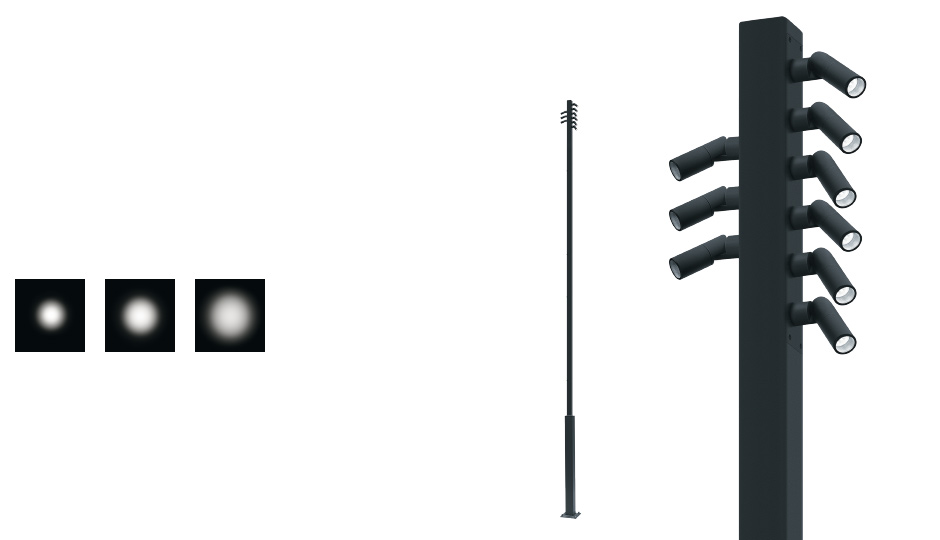

Supersystem outdoor

for individual lighting tasks

Spot
11° (SP)
Wide Flood
40° (WFL)

Flood
27° (FL)

Supersystem outdoor

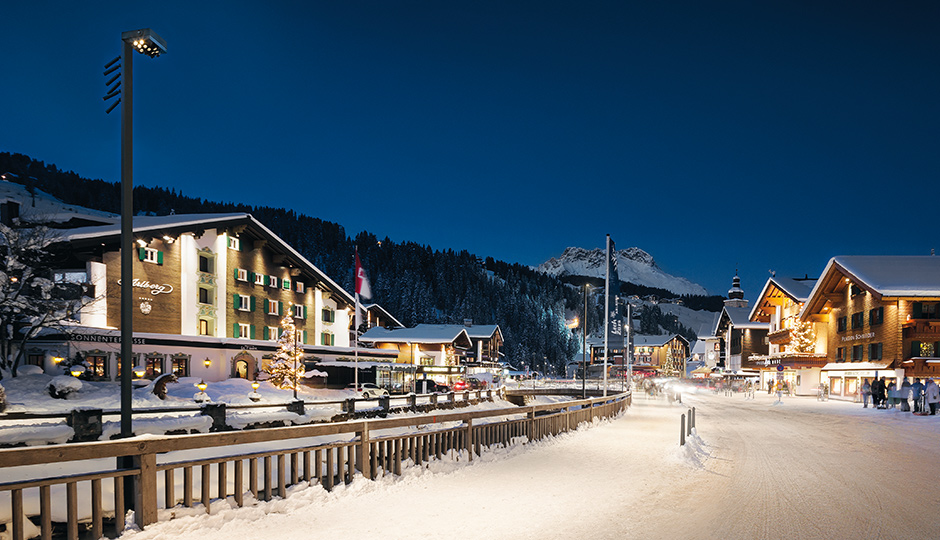

Lech

Municipality of Lech am Arlberg, Lech am Arlberg | AT
Lighting project design: Dieter Bartenbach, Innsbruck | AT

Supersystem outdoor
